Lock50 HW04-B Tool Kit

Lock50 JLR OBD HW04-B Key Programming and Diagnostics Toolkit

The Lock50 JLR OBD HW04-B is a powerful key programming and diagnostics tool designed specifically for Jaguar and Land Rover vehicles from 2017 to 2024+. This tool enables locksmiths and automotive professionals to add and remove keys, program new RFA modules, and work with locked and unlocked security modules efficiently.

HW04-B is ideal for standard programming, diagnostics, and works on unlocked RFAs/BCMs.

Important: If the BCM has been updated (typically post-2021), the standard HW04-B Toolkit cannot complete immobilizer programming for a new RFA. To enable RFA replacement without changing the BCM, the SW28 special function is required—available to buy in single or unlimited use.

Key Features:

• Key Programming & Module Replacement – Allows programming of new RFA modules when the existing one is locked.
• Quick Key Addition/Removal – Easily add or remove keys when using an unlocked RFA.
• Vehicle Compatibility – Supports Jaguar and Land Rover models from 2017 to 2024+.
• Cost-Efficient – Helps avoid expensive dealer costs by enabling direct programming solutions.
• Remote Support – Includes TeamViewer remote assistance to guide users through key programming processes.

Free Features Included:

• Diagnostics & DTC Reading – Read and clear diagnostic trouble codes (DTC).
• VIN Programming – Modify VIN and module configurations.
• CCF Flashing – Configure vehicle settings via as-built flashing.
• Key Copying & Alarm Disabling – Clone keys and disable alarms when using compatible MCU files.

Supported Vehicle Makes & Models

• Jaguar E-Pace 2018–2025
• Jaguar F-Pace 2017–2026
• Jaguar F-Type 2016–2024
• Jaguar I-Pace 2019-2025
• Jaguar XE 2016-2026
• Jaguar XJ 2016-2019
• Range Rover L460 2022-2026
• Range Rover Sport L406 2013-2022
• Range Rover Sport L494 2016-2022
• Range Rover Velar 2018-2026
• Range Rover Evoque 2020-2026
• Land Rover Defender 2021-2026
• Land Rover Discovery Sport 2016-2025
• Land Rover Discovery  2017-2024

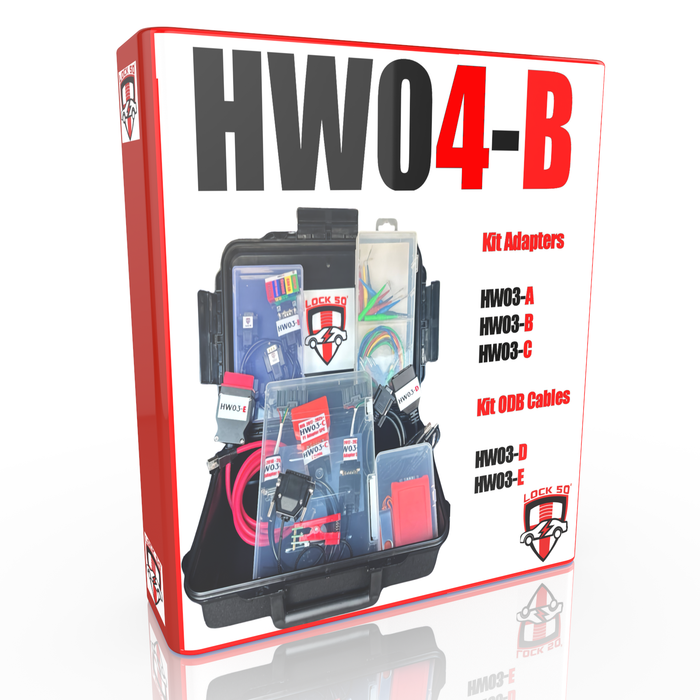

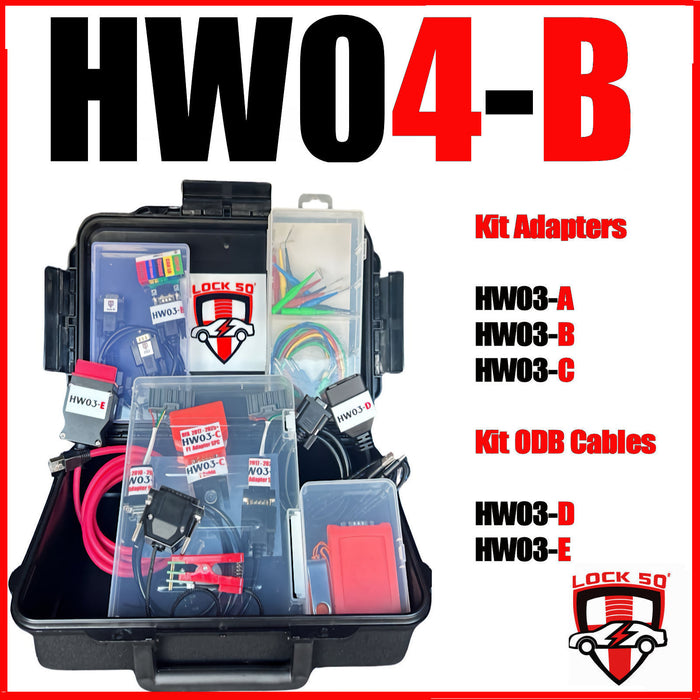

Package Contents:

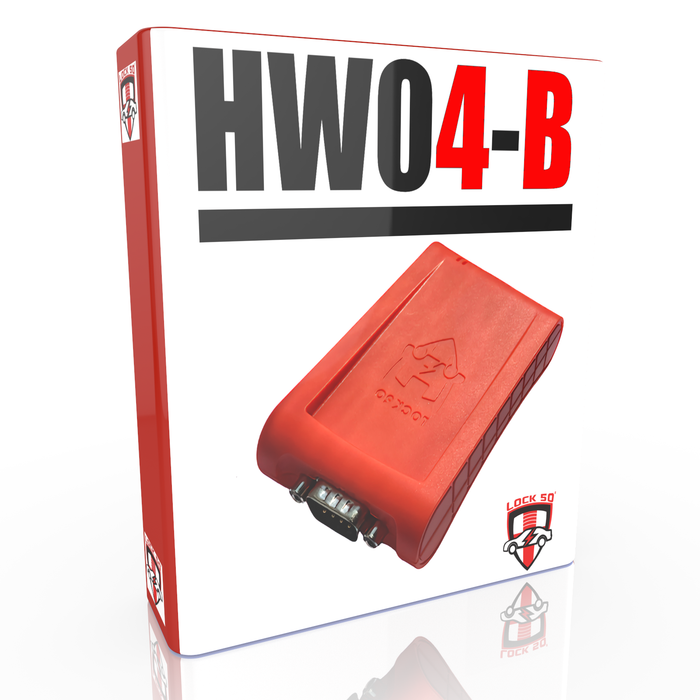

• 1 HW04 Device
• 1 HW03-A SPC Read/Write Adapter for Unlocked MCU
• 1 HW03-B CAN Wires Alarm-off for Vehicles 2010 to 2022
• 1 HW03-C RFA Adapter Cable for Vehicles 2010 to 2024+
• 1 HW03-D OBD Cable for All CAN Vehicles 2010 to 2022
• 1 HW03-E OBD Cable for DOIP EVA2 Vehicles 2021 to 2024+
• 1 HW03-F OBD Cable for CAN Vehicles 2017 to 2024+
• 1 USB Flash-Drive with Lock50 Software Application
• 1 USB Cable
• 5 HW05/HW06 Lock 50 JLR Change ID Key

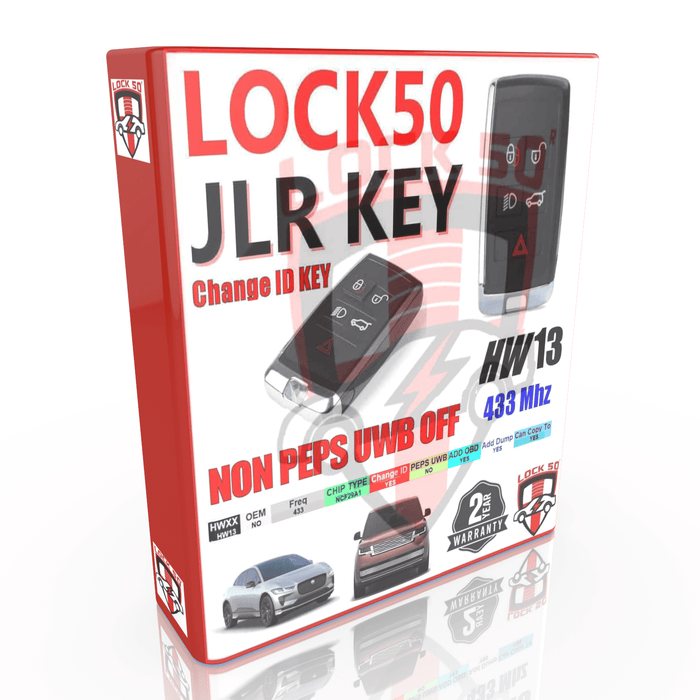

• 5 HW13/HW14 Lock 50 JLR Change ID Key

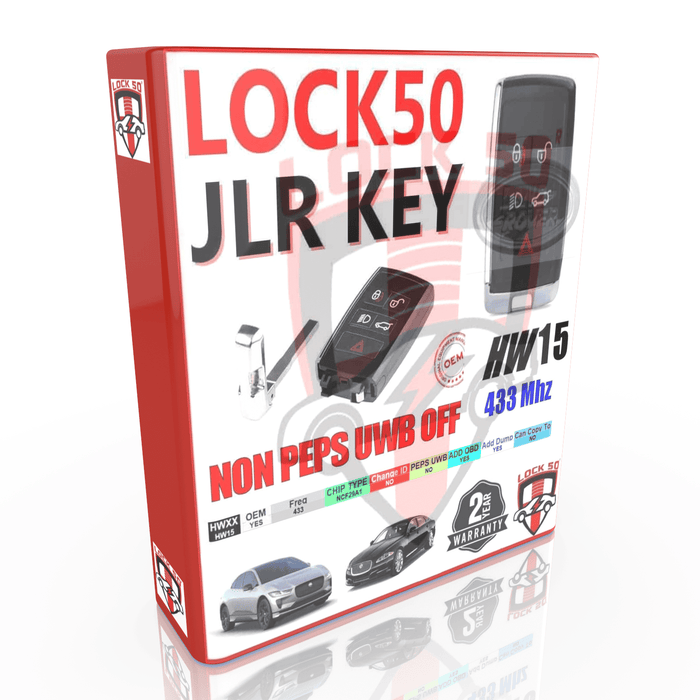

• 5 HW15/HW16 OEM JLR PSFOB Non-PEPS UWB Keys
• Value of keys in pack £1850

For more details, download the user guide: Lock50 HW04-B Tool Kit
