Lock50 HW04-C Tool Kit Enhanced Version - with SW28 Special Function (Anytime Use)

Lock50 JLR OBD HW04-C Key Programming and Diagnostics Toolkit

The Lock50 JLR OBD HW04-C is an advanced key programming and diagnostics toolkit specifically designed for Jaguar and Land Rover vehicles from 2017 to 2024+. This professional-grade solution enables locksmiths and automotive specialists to efficiently add and remove keys, program new RFAs, and work with both locked and unlocked security modules.

HW04-C is a professional-grade solution that handles locked modules, advanced key duplication, and supports newer models more robustly.

Key Addition: SW28 Special Function - worth £2000

As part of this package, the HW04-C includes the SW28 special function—an unlimited use upgrade. This function enables RFA replacement without the need to replace the BCM, even on vehicles with the latest post-2021 software updates. SW28 bypasses limitations caused by updated BCM firmware, ensuring seamless immobilizer programming on newer JLR models.

This addition eliminates one of the biggest limitations faced by professionals working on the latest JLR models, enabling quick and efficient work.

Key Features:

• Key Programming & Module Replacement – Program new RFA modules, even when the existing module is locked.
• Quick Key Addition/Removal – Effortlessly add or remove keys when working with an unlocked RFA.
• Vehicle Compatibility – Designed for Jaguar & Land Rover models from 2017 to 2024+.
• Cost-Efficient – Reduces dealership dependency by providing direct programming solutions.
• Remote Support – Includes TeamViewer assistance for guided key programming and troubleshooting.

Free Features Included:

• SW01 - SW02: Read Jaguar Land Rover PCF7953 & NCF29A Key Frequency & Locked Status.
• SW04 - SW07: Key emulation for Jaguar Land Rover MCU SPC560B60L3 modules (2017-2024+).
• SW09 - SW14: Module key copying, MCU dumping, and key duplication for both locked & unlocked RFA/KVM modules.
• SW20 - SW23: Diagnostics, VIN programming, and module flashing for vehicles from 2006 to 2024+.
• SW24 - SW30: CCF Flashing, UWB/PEPS Modifications, Key Addition, and OEM UWB key support.
• SW28 Special Function (Unlimited Use) – Enables RFA replacement without BCM swap, bypassing post-2021 immobilizer restrictions.
• SW31 - SW37: ALARM OFF functions, key duplication, DOIP programming, and Ethernet-based diagnostics (2022-2024+).

Difference between HW04-B and HW04-C

• Advanced Key Programming (HW04-C)
  Includes SW36 for key duplication and emergency start on locked RFAs and BCMs for 2017–2025+ PEPS UWB vehicles. Not available in HW04-B without upgrades.
• Broader Special Function Access
  HW04-C offers a wider range of software modules (SW01–SW36), including key emulation, used key reprogramming, and advanced RFA/BCM handling. HW04-B has limited access unless upgraded.
• Upgrade Path
  HW04-B users can upgrade to HW04-C via a software license, unlocking SW36 and additional functions. Subscription includes 12 months free, with annual fees thereafter.
• Programming When Modules Are Locked
  HW04-C supports full keyless entry and emergency start even when the RFA or BCM is locked—unlike HW04-B.

Supported Vehicle Makes & Models

• Jaguar E-Pace 2018–2025
• Jaguar F-Pace 2017–2026
• Jaguar F-Type 2016–2024
• Jaguar I-Pace 2019-2025
• Jaguar XE 2016-2026
• Jaguar XJ 2016-2019
• Range Rover L460 2022-2026
• Range Rover Sport L406 2013-2022
• Range Rover Sport L494 2016-2022
• Range Rover Velar 2018-2026
• Range Rover Evoque 2020-2026
• Land Rover Defender 2021-2026
• Land Rover Discovery Sport 2016-2025
• Land Rover Discovery  2017-2024

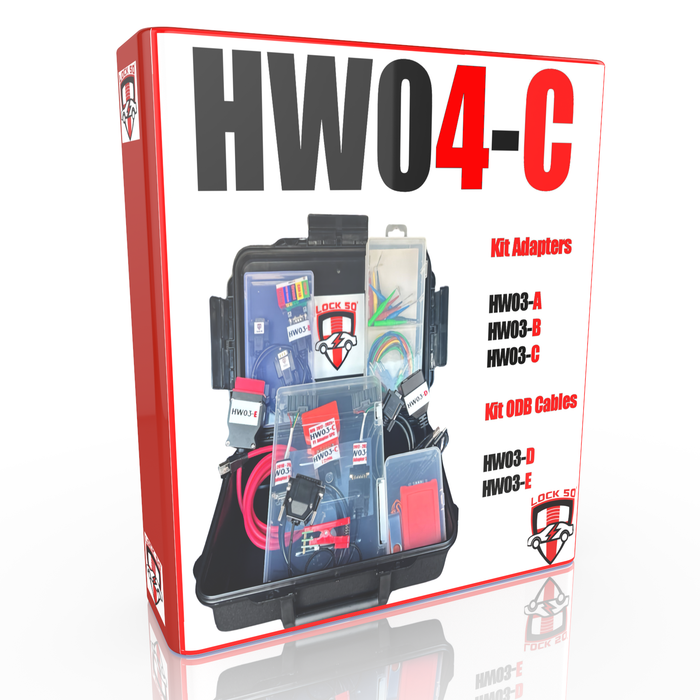

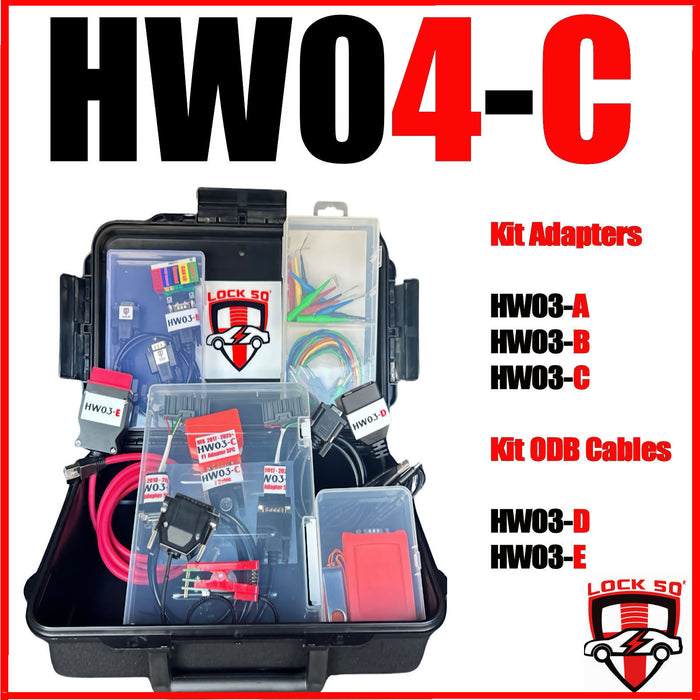

Package Contents:

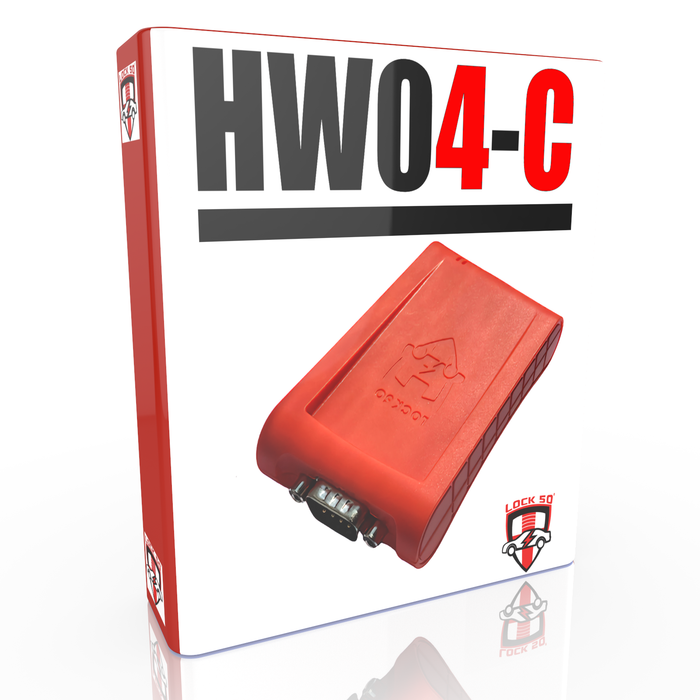

• 1 × HW04 Device
• 1 × HW03-A SPC Read/Write Adapter for Unlocked MCU
• 1 × HW03-B CAN Wires (Alarm-Off for Vehicles 2010–2022)
• 1 × HW03-C RFA Adapter Cable (Vehicles 2010–2024+)
• 1 × HW03-D OBD Cable (All CAN Vehicles 2010–2022)
• 1 × HW03-E OBD Cable (DOIP EVA2 Vehicles 2021–2024+)
• 1 × HW03-F OBD Cable (CAN Vehicles 2017–2024+)
• 1 × USB Flash Drive with Lock50 Software Application
• 1 × USB Cable

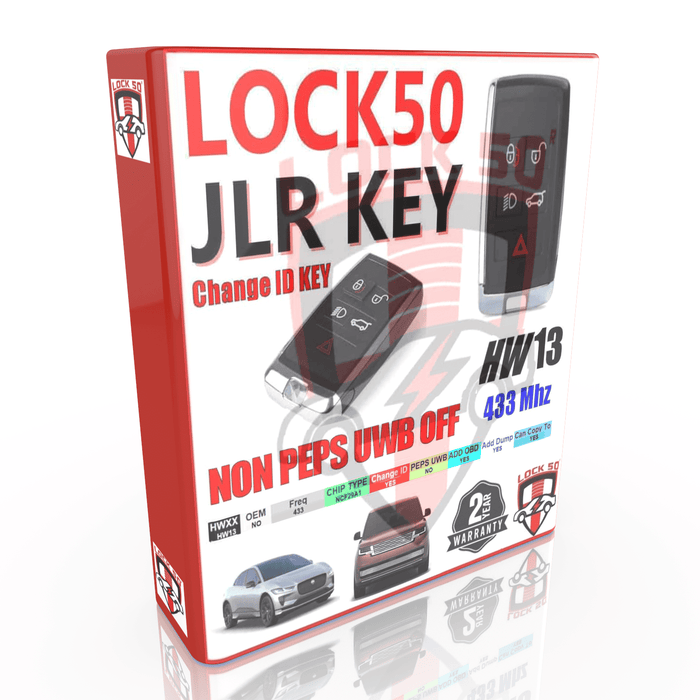

• 10 × HW13/HW14 Lock50 JLR Change ID Keys

• Total cost of keys £1500

For more details, download the user guide: Lock50 HW04-C Tool Kit
