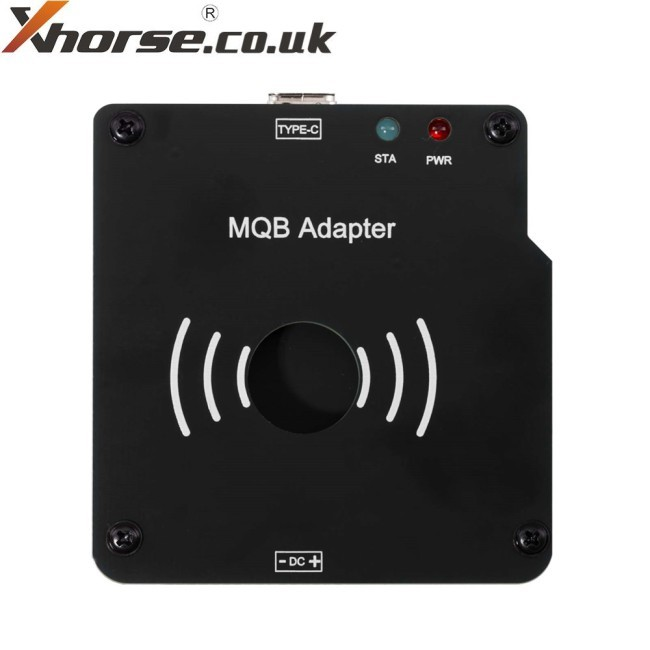

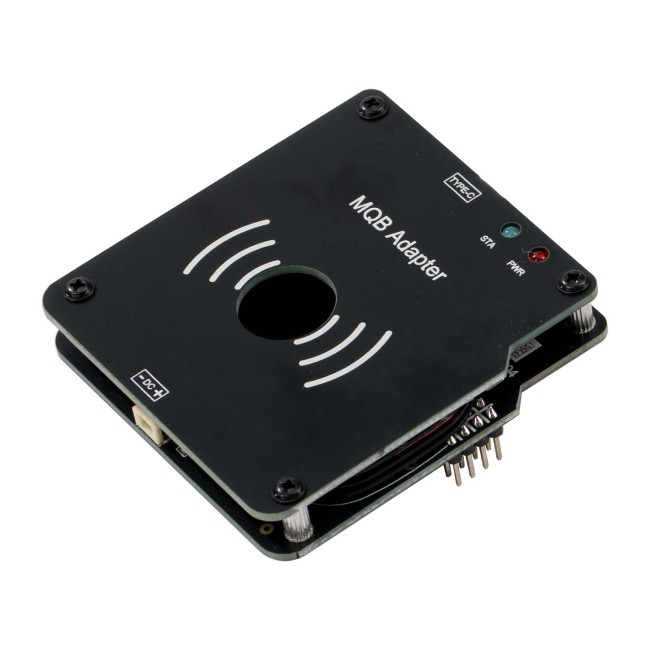

XHORSE XDMQBAGL MQB Adapter

Simplified Key Addition Without Dashboard Disassembly

Product Overview:

The XHORSE XDMQBAGL MQB Adapter is a revolutionary tool designed for effortless key programming for most MQB48 keys, without the need to disassemble the vehicle’s dashboard. By only removing the key and connecting two wires, this adapter offers a simple, low-risk method for adding keys. When paired with the VVDI MLB Tool, it ensures a seamless key data reading experience for MQB48 key systems.

Key Features:

• No Dashboard Removal: There’s no need to dismantle the dashboard. Simply remove the key and solder two wires for easy key programming.
• Simplified Key Addition: With minimal steps and low risk, this adapter makes it easier to read key data and add new keys.
• Optimized for Computer Use: For best results, it is recommended to collect data using a computer instead of a tablet.
• Compatible with VVDI Tools: Works smoothly with VVDI Key Tool Plus or VVDI2 (with MQB48 function enabled) to effortlessly complete key data reading and key generation.

How It Works: (User Guide)

For VVDI2 Device:

1. Connect the MLB device + MQB adapter to read IMMO data from the MQB48 key.
2. Load the IMMO data onto the VVDI2 tool to generate and learn the key (MQB function must be enabled on VVDI2; no MQB48 NEC35XX locking function needed).

For KEY TOOL PLUS / KEY TOOL MIDI Device:

1. Directly connect the tablet device to the MLB device + MQB adapter to read IMMO data from the MQB48 key.
2. Load the IMMO data onto the tablet device to generate and learn the key (fourth-generation authorization required; no MQB48 NEC35XX locking function needed).

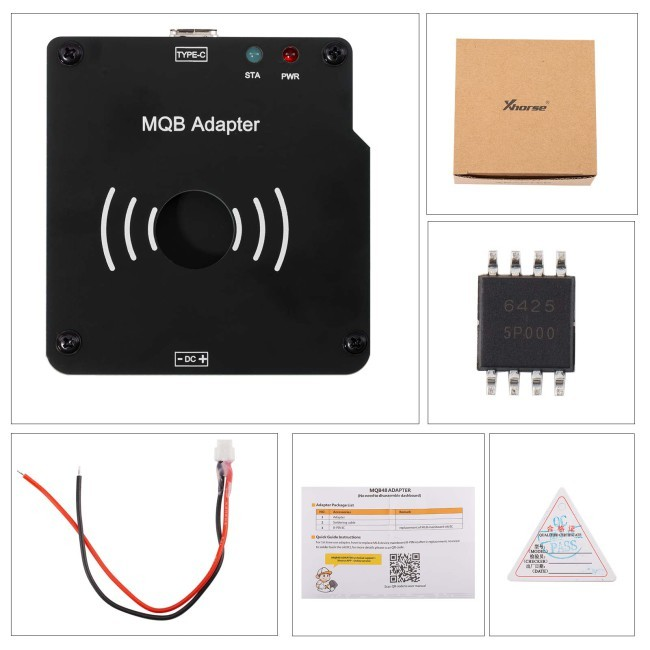

Package Contents:

• 1 x XHORSE XDMQBAGL MQB Adapter

With its easy setup and ability to avoid disassembling the dashboard, the XHORSE XDMQBAGL MQB Adapter is the ideal solution for quick, efficient key programming for MQB48 systems.
